ANGELANTONI TEST TECHNOLOGIES

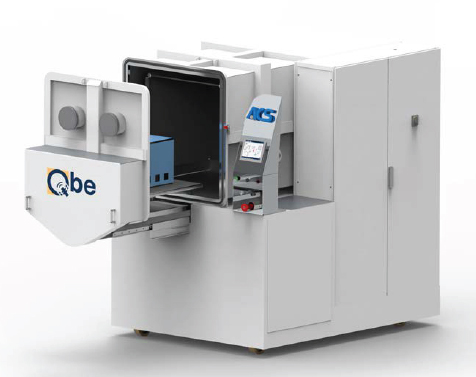

THERMAL VACUUM CHAMBERS (TVC)

Angelantoni Test Technologies has developed a wide range of Thermal Vacuum Chambers thanks to its wide experience in several techniques applied in the environmental simulation and testing.

TVC are able to artificially create the operating conditions (temperature and high vacuum) of whole satellites or equipment used on board of satellites.

• Wide range of TVC sizes, with diameters ranging from under 1m up to 10m
• High quality and vast experience in vacuum pumping systems
• High quality of black shroud paint with a solution for low outgassing at maximum temperatures (>+150°C) according to ESA standard ECSS-Q-ST-70-02C
• Special shroud design to withstand the highest heat dissipations (>5 kW/m2)
• Special attention to minimizing consumption through hardware solutions and software management of the plant
• Integrated control and monitoring system totally developed by ACS
• Special attention to and experience in redundancy aspects
• Full capability for supplying turnkey syste ms

MODULAR AND CUSTOMIZED WALK-IN CHAMBERS

ACS prefabricated chambers can be supplied for temperature only or temperature/ humidity tests, and are suitable for tests on electronic modules or complete assemblies (solar panels, satellites, antennas, etc…). Where high power dissipation by the specimen is expected, i.e.testing of complete assemblies, the temperature humidity chamber incorporates the indirect system for climatic thermoregulation.

Entrance doors for technicians or materials can be supplied for any size chamber, either side hung and automatic sliding type. TRANSPARENT THERMAL CHAMBERS Special chambers to combine thermal tests and Radio Frequency measurements on active antennas.

ALTITUDE TEST CHAMBERS

Climatic chambers for altitude tests are used to reproduce the operating conditions of components or products that operate in environments where the atmospheric pressure decreases over time. When carrying out tests in the aeronautics industry, an effective combined control of temperature and pressure must be guaranteed in order to simulate the exact altitude above sea level. Humidity control is also necessary in some cases.

This range of altitude test chambers is available in both versions: thermostatic (temperature and pressure control) and climatic (temperature, pressure and humidity control) in volumes of 150, 300 and 1000 liters. The 500 and 1000 l models are also available in the 5 K/min version. A special wall thermoregulation system (optional) guarantees the best functioning below 300 mb, thermoregulating the test environment by radiation.
